Quick Curtain Motor

Model Number BCM100D
Curtain Track Length Maximal 5.2m
Moving Speed 12cm/s
Rated Torque 1.2Nm
Operating Temperature -20~85°C
Operating Humidity 0~80%
Power Supply 100-240V AC 50/60Hz
Power Consumption 40W
Power Cable Length 85cm
Interface RJ11
Button Coding / Setting button

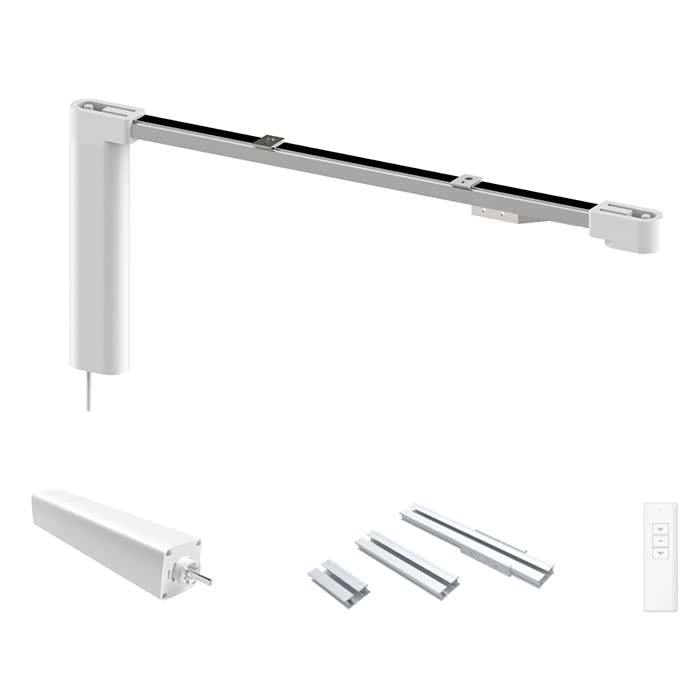

Track Set Track(1m)* 4, track (0.5m), track(0.2m)*2, track(0.1m), connector(0.2m), connector(0.1m)*5
Maximal Load 40Kg
Radio
Radio Protocol CoSS
Signal Range(Open Field) 100m


Construction
Color White
Dimension 270*50*50mm
Weight 5kg
Casing ABS, aluminum
